Dry Lube Coatings
DL 100
Bonded MoS₂ lubrication for sliding interfaces.
Available finishes
- Grey
Colors are representative.
Product information
What DL 100 does
Slickote DL 100 is a molybdenum disulfide solid film lubricant for the places wet lubricants can't go: surfaces where oil and grease are difficult to apply or retain, or where they would collect dirt and dust and turn into an abrasive paste.
Technical specifications
| Cure schedule (project guide) | 300°F · 1 hour |
|---|---|
| Use range (project guide) | −90°F to 400°F |
| Specification (project guide) | AS 5272 Type 1 (MIL-L-46010E Type 1) |
| Product class | Solid film lubricant |
| Solid lubricant | Molybdenum disulfide |
| VOC | 742 g/L · 6.19 lbs/gal · AQMD Rule 1124 |
| Supply form | Ready to apply |
Source: Slickote product information and safety data sheets.
Applications & coating system

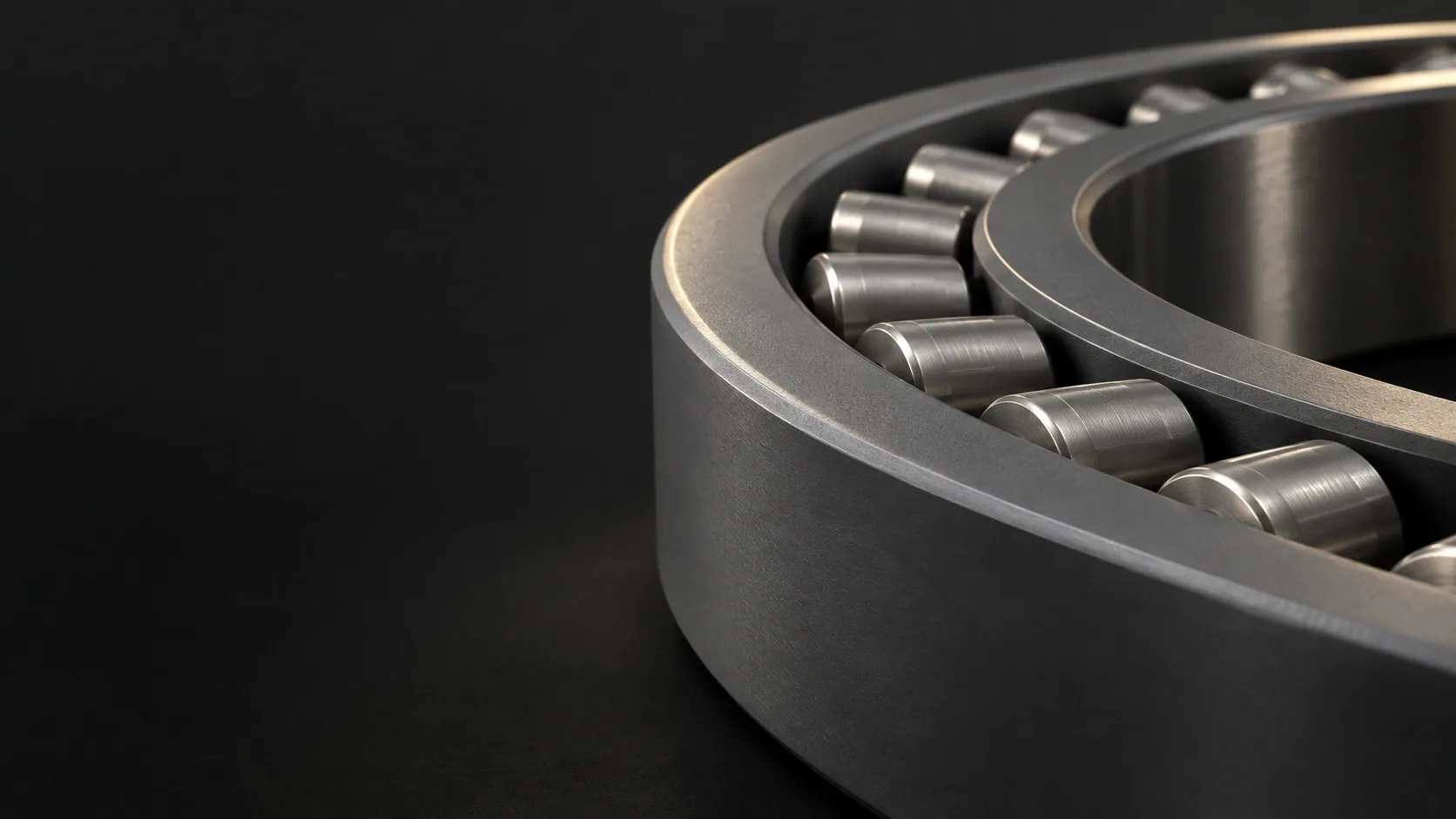

Plain and spherical bearings, guides, hinges and threads where wet lubricant is difficult to retain.
The heat-cured, resin-bonded film reduces wear and corrosion and prevents galling and seizure of metals. It is supplied ready to apply and is built for sliding-motion hardware — plain and spherical bearings, flap tracks, hinges, threads, and cam surfaces.
DL 100 and PTFE 200X
DL 100 uses molybdenum disulfide as its solid lubricant. Compare with PTFE 200X when choosing between a MoS₂ film and a PTFE/MoS₂ system.
Specification requirements
Illustrations explain a working interface; they do not qualify a complete suspension, armament, gear train, or rolling bearing for service.
Confirm before application
- Qualification for the specified process
- Film thickness and fit allowance
- Load and sliding speed
DL 100 application examples
Illustrations identify the metal surface, finish and coating function.
Suspension ball joints
- Surface
- Metal joint surfaces
- Finish
- Grey
DL 100 provides a bonded MoS₂ film for spherical bearing interfaces. The contacting metal surfaces require application-specific load and fit qualification.

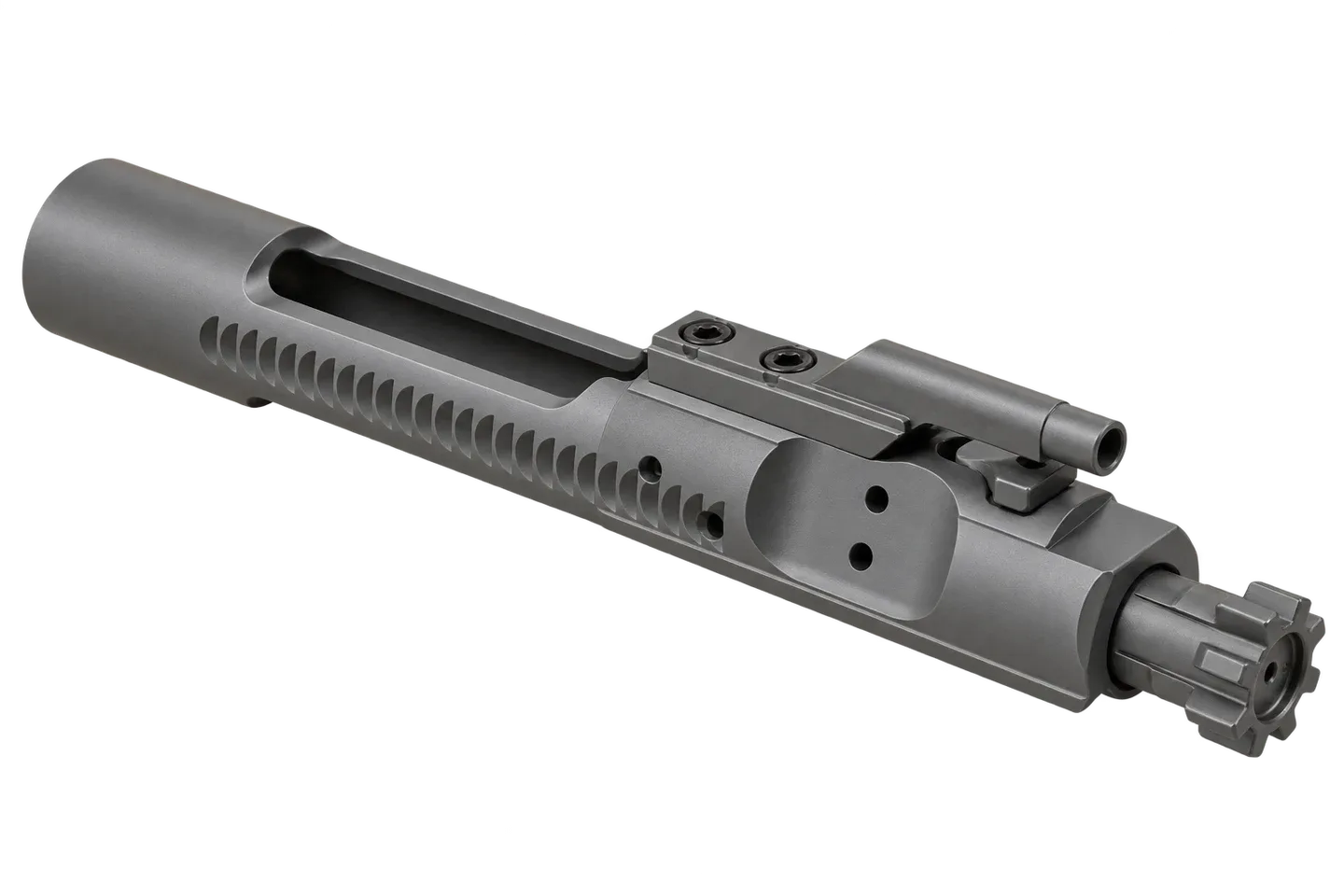

Armament components
- Surface
- Sliding metal surfaces
- Finish
- Grey
DL 100 provides dry lubrication on sliding metal surfaces where wet lubricant is difficult to retain, helping reduce wear and resist galling.
Gears & drive components
- Surface
- Metal tooth surfaces
- Finish
- Grey
A bonded MoS₂ film lubricates the metal contact surfaces. Gear load, speed and film thickness need to be evaluated for the intended drive.
Working surface: The contacting metal interface. Rubber, springs, seals and surrounding assemblies are context only. Illustrative applications and representative finishes. Confirm the substrate, preparation, and service requirements with Slickote before specifying a coating.
Safety data sheets
Download the PDF for your finish. These documents cover handling, storage and safety.
