PTFE Coatings
PTFE 200X
PTFE with MoS₂ for contacting metal surfaces.
Selection guidance
Is PTFE 200X right for your part?
Mating, sliding, and threaded metal surfaces where wear and galling are concerns.
Heat-cured PTFE fluorocarbon-resin bonded solid film lubricant coating with molybdenum disulfide.
How it differs
200X adds molybdenum disulfide to the PTFE system. Compare it with 100X when protection at metal-to-metal interfaces is the priority.
Compare with PTFE 100XAvailable finishes
- Semi Gloss Black
- Low Gloss Black
Colors are representative.
Technical specifications
| Product class | Solid film lubricant |
|---|---|
| Solid lubricants | PTFE + molybdenum disulfide |
| VOC (coating) | Confirmation needed — values conflict in supplied SDS |
| Substrate | Sealed or unsealed anodized aluminum; metal surfaces |
Source: supplied product information and safety data sheets. See document dates below.
Qualification & application conditions
The stated salt-spray and specification claims refer to the coating system over anodized aluminum, not every metal or pictured assembly.
Confirm for your application
- Cure schedule
- Film thickness and fit allowance
- Load, motion and service temperature
Available documents
Safety data sheets
SDS documents cover handling and safety. Application parameters are listed separately above.
Document note: the supplied SDS reports different coating VOC values on pages 1 and 8. Confirm the current value with Slickote.
From formulation to application
Where PTFE 200X
goes to work.
A closer look at the surfaces that do the work. Explore the parts, the finish, and the role of the coating.
Industrial gate hinge
Heavy-duty hinges
- Surface
- Steel pivot hardware
- Finish
- Low Gloss Black
Protection at the pivot
A familiar hinge makes the job clear: metal surfaces move against one another under load. PTFE 200X combines PTFE with molybdenum disulfide to help resist wear, galling, and seizure.
Studs, nuts & washers
Threaded assembly hardware
- Surface
- Steel
- Finish
- Low Gloss Black
Dry lubrication for metal-to-metal contact
Threaded hardware illustrates the coating’s role at contacting metal surfaces. Its PTFE and MoS₂ formulation helps resist wear, galling, and seizure.

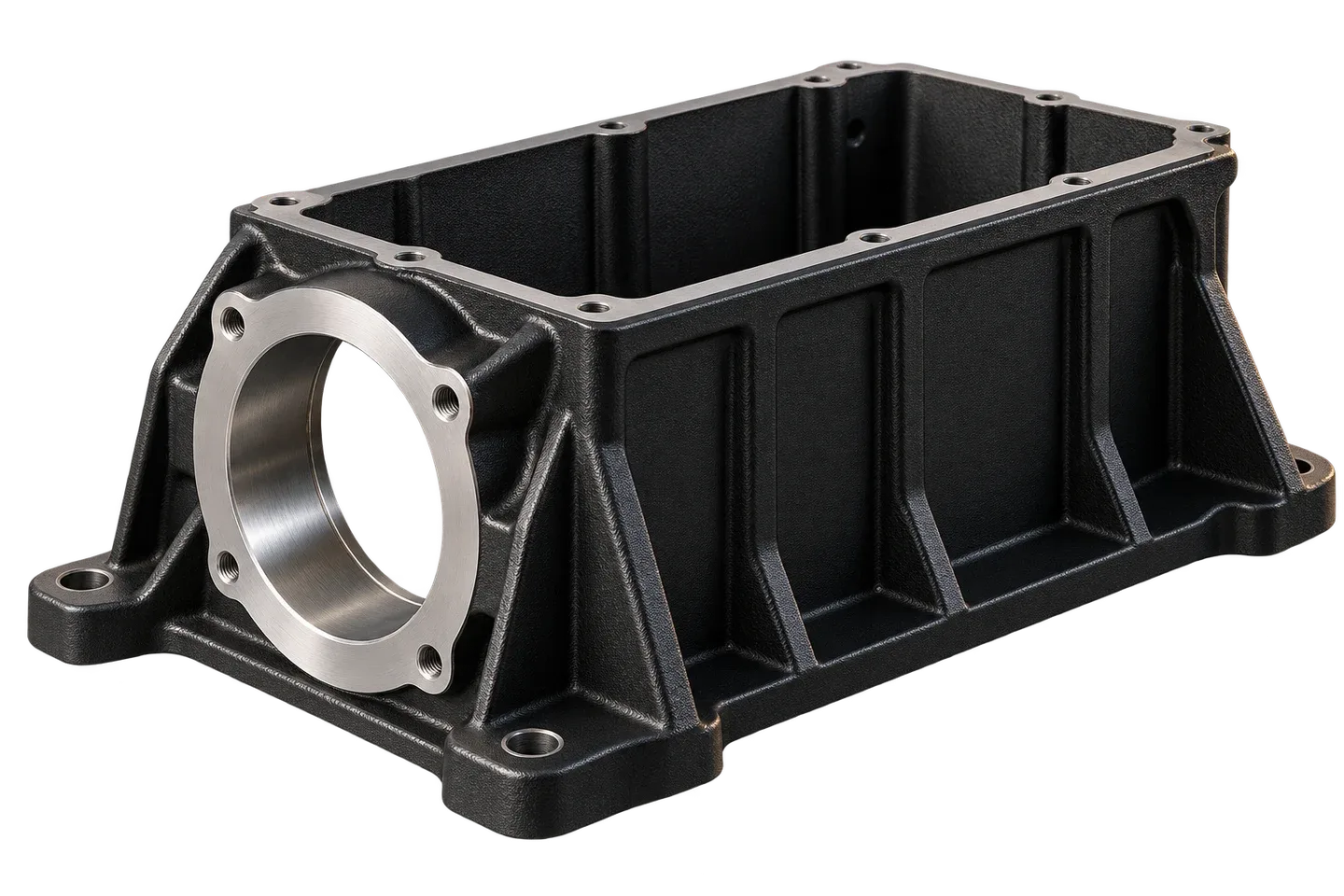

Ribbed mounting housing
Anodized aluminum castings
- Surface
- Anodized aluminum
- Finish
- Semi Gloss Black
Corrosion protection and a finished appearance
For anodized aluminum castings, PTFE 200X brings dry lubrication and corrosion protection together with a decorative black-anodized appearance.
Working surface: Pivot, thread, or mating interface; confirm coverage and tolerances for the actual component. Illustrative applications and representative finishes. Confirm the substrate, preparation, and service requirements with Slickote before specifying a coating.
More about the formulation & uses
Slickote PTFE 200X pairs the PTFE fluorocarbon-resin film of the 100 series with molybdenum disulfide. The MoS₂ addition brings added protection against wear, corrosion, galling, and seizure of mating metal surfaces — while keeping the dry lubricity and decorative finish of the base system.
Like PTFE 100X, it is applied over sealed or unsealed anodized aluminum per MIL-A-63576 Ty3, delivering 1000 hours of salt spray and impact resistance. In low gloss black it serves guns, rifles, and armaments for OEM firearms manufacturers, and over an anodize finish it is an alternative to e-coating under GMW 14671 Ty F.
Typical uses
- Mating metal surfaces at risk of galling and seizure
- Guns, rifles, and armaments — low gloss black for OEM firearms manufacturers
- Automotive components specified to GMW 14671 Ty F over anodize
- Anodized aluminum castings requiring a decorative dry-lubricating finish
MoS₂-reinforced protection. Molybdenum disulfide adds protection that reduces wear and corrosion and helps resist galling and seizure of metals.
Qualified corrosion protection. 1000 hours salt spray and impact resistance applied over sealed or unsealed anodized aluminum per MIL-A-63576 Ty3.
Dry lubrication. A dry lubricating surface with a low coefficient of friction on metal parts.
Decorative anodized finish. Provides the decorative finish of black-anodized aluminum on castings.
E-coat alternative. An alternative to e-coating for automotive specification GMW 14671 Ty F over an anodize finish.
Let’s talk coatings
Discuss PTFE 200X for your part.
Share your substrate, operating conditions, and specification so we can confirm the coating and application requirements.
